Power forward into 3D visualization.
Voxler è l’innovativo software per la visualizzazione 3D dei dati!
Voxler importa i dati da moltissime fonti e crea dei magnifici grafici 3D che permettono di visualizzare le relazioni nascoste tra i set di dati. È possibile poi esportare i grafici salvandoli nei più comuni formati. Le funzioni di stampa sono gestite da un box di dialogo con un’anteprima di stampa molto utile quando i grafici da stampare si estendono su più pagine.
Voxler è dotato di una moderna interfaccia utente con finestre e barre degli strumenti posizionabili a piacere. La finestra di dialogo visualizza le connessioni tra i dati e l’output e evidenzia la lista dei settagli specificati per ciascun modulo.
Il software è adatto per tutti gli scienziati e i professionisti che vogliono visualizzare al meglio i propri dati 3D: geologi, meteorologi, biologi, medici, ingegneri, sismologi, biotecnologi, studiosi dell’ambiente, ecc.

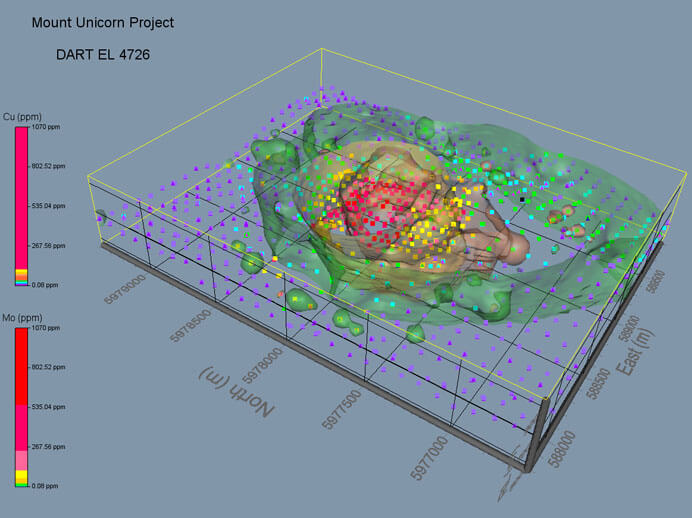

Model data with striking clarity in every dimension. With Voxler’s extensive 3D modeling tools, it is easy to visualize multi-component data for geologic and geophysical models, contamination plumes, LiDAR point cloud, borehole models, or ore body deposit models. Distinguish areas of interest, highlight important information, and easily communicate your newfound knowledge to stakeholders in three dimensions.
Explore the depths of your data. A wealth of information at your fingertips waiting to be discovered. View your Voxler model from any angle to pinpoint anomalies and discern patterns and trends. Use Voxler’s extensive analysis tools to discover new business opportunities for you and your clients. Discover the value of your data with Voxler.
Communicate your results with confidence and ease. Voxler’s powerful modeling abilities facilitate complete and thorough understanding of data, regardless of complexity. Clearly communicate your message to clients, stakeholders, and coworkers with Voxler.
Voxler is an industry-trusted solution for many scientist and engineers across the globe. Experience Voxler for yourself and see why so many people trust Voxler to display their data.
Who should use Voxler
- Environmental professionals analyzing groundwater and soil contaminant sites
- Geoscientists studying 3D seismic and microsiesmic data
- GIS professionals needing to display data in true 3D space
- Geotechnicians modeling CPT or GPR data
- Meteorologists compiling atmospheric studies
- Biologists conducting organism sampling
- Oceanologists evaluating water temperature, contaminants, and salinity surveys
- Seismologists modeling velocity
- Anyone viewing the distribution of 3D data

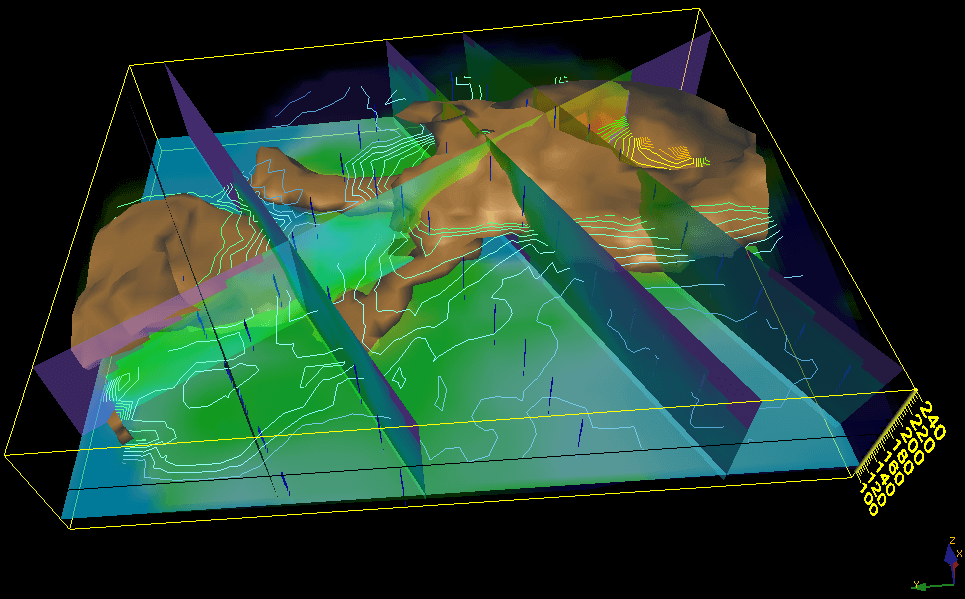

Create 3D Models
Improve your understanding of three dimensional data. Voxler transforms your data into comprehensive models that ease decision making and communicate key information to stakeholders and clients. Have confidence your data is accurately represented with Voxler.
Voxler 3D Models

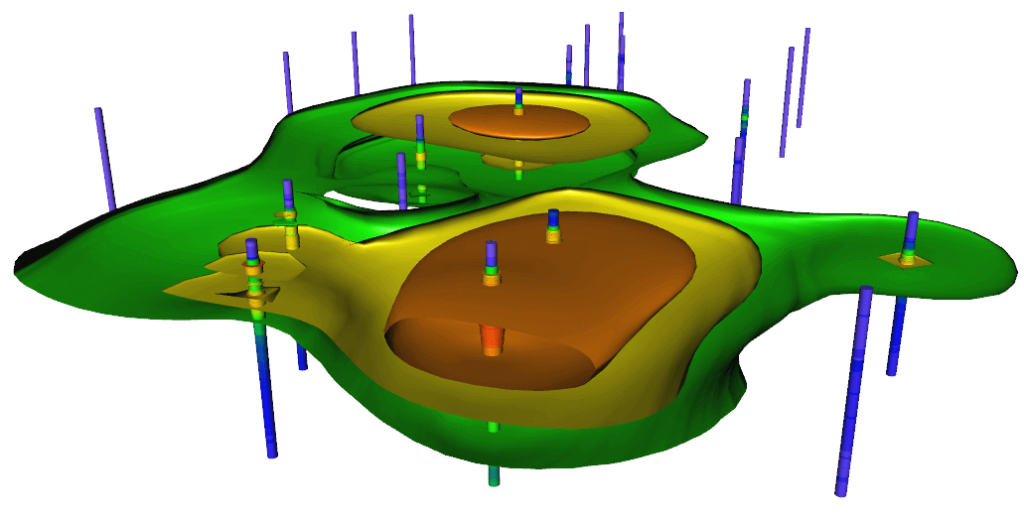

- Borehole (well), straight or deviated
- Point cloud
Present your data at its best with Voxler’s numerous customization options. Control every aspect of your model down to the smallest details so you can convey complex ideas in an easy to understand manner.
Voxler Customization Options
- Titles, axes, scale bars
- Legends, profiles, cross sections
- Edit all axis parameters, include multiple axes
- Combine multiple models
- Slice models at any angle
- Insert clip planes and bounding boxes
- Full control over opacity, lighting, and texture options
- Edit text, line, fill and symbol properties
- Add text, polylines, polygons, symbols, and spline polylines
- Include georeferenced images
- Many more…
Grid Data with Certainty
Have complete confidence in the accuracy of your model. Voxler will produce a uniform 3D lattice from your regularly or irregularly spaced 3D data. Dive into the details of the data with metric calculations including data order statistics (minimum, lower quartile, median, upper quartile, maximum, range, midrange, inter-quartile range), moment statistics (mean, standard deviation, variance, coefficient of variation, sum), other statistics (root mean square, median absolute deviation), and location statistics (count, density, nearest distance, farthest distance, median distance, average distance).
Voxler Interpolation Features
- Gridding methods: Inverse Distance and Local Polynomial
- Filter, exclude data
- Perform mathematical operations on lattice
- Transform, merge, resample lattice
- Extract a subset or slice of lattice
Collaborate with Confidence
Quickly share models with stakeholders, clients, and colleagues. Models are ready for printed publication with high quality formats like PDF or TIFF, or share your work online by exporting them into PNG or SVG formats. It is easy to insert diagrams into presentation tools such as Microsoft Word or PowerPoint with a simple copy and paste, or for a more dynamic view, capture a video with Voxler’s built-in video tool.
Take the guesswork out of learning a new program. With the assistance of Voxler’s intuitive user interface, quickly create insightful models and visualizations.
Voxler User Interface Features

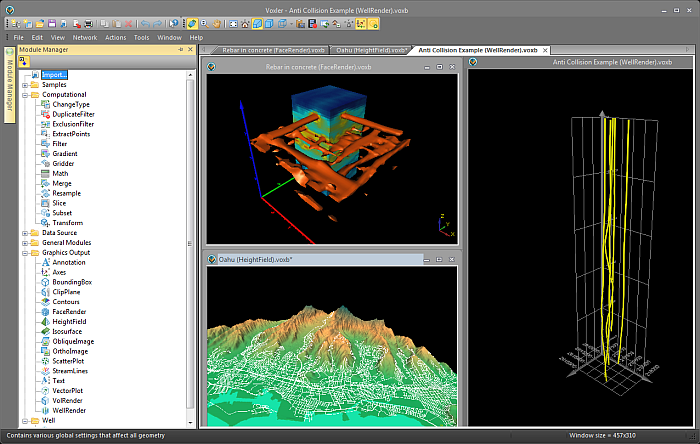

- Single window to view, edit, and manipulate the data and models
- Network manager to easily manage modules
- Property manager for quick feature editing
- Worksheet window to view or edit raw data
- Dock or float all managers
- Customize toolbar layout
- Welcome dialog to get you started
- Customize practically all aspects of the user interface to fit your needs
Work Smart, Not Hard with Automation
Don’t waste time doing the same process over and over. Create scripts to automate repetitive tasks, and run your favorite scripts directly from the Grapher ribbon. Grapher can be called from any automation-compatible programming languages such as C++, Python, or Perl. Grapher also ships with Scripter, a built-in Visual Basic compatible scripting tool. Better yet, use the script recorder to transform actions performed in Grapher into a script.
Save time with automation, and save even more time by reviewing the extensive set of sample scripts in the Grapher Automation Knowledge Base!
We have compiled a list of some of the top new features in Voxler. This list is only a small sampling of the new features added to Voxler.
- Drape Vector Data over HeightFields
- 3D DXF Support
- The new Worksheet Window
- Reproject point data
- LiDAR LAS Support
- More user friendly, streamlined data import
- New ScatterPlot enhancements
- The User Interface is Now More Friendly
- The new Welcome to Voxler dialog
- Display SEGY files using geo-coordinates
- Import ECW and SID Imagers at full resolution
- Blanking Value Support in HeightFields
- Display SEGY files using geo-coordinates
- Drape Contours over HeightFields as a vector overlay
- International Font Support
Drape GIS Data and Vector Maps over HeightFields
Drape vector data over HeightFields to create valuable overlays of GIS data and other vector maps that include point, line, or polygon data. Simply import any one of the supported vector file formats (BLN, BNA, DXF, E00, GSB, GSI, KML, KMZ, MIF, or SHP) and drag the connector to a HeightField module to overlay it on the 3D surface. Voxler offers vector overlay customizations, allowing full control of colors, line width, and opacity. All vector overlays are treated as true vectors, so zero pixilation occurs and the points, lines, and polygon borders look crisp and clean at an zoom level.
3D DXF Support is here!
You have waited long enough, 3D DXF support is finally available in Voxler 4!
3D DXF files contain a variety of entities and objects, most of which are supported in Voxler 4. The import entities that are supported in Voxler 4 are LINE, 3DLINE, POINT, POLYLINE (which includes the variations of 3D polygon mesh and polyface mesh), LWPOLYLINE, MESH, 3DFACE, and VERTEX. Once a DXF is imported into Voxler, the drawing style for these entities can be changed from shaded to lines (typically a wire mesh) to points. This flexibility provides customized control of the DXF rendering in Voxler 4.
All of these entities and objects can be exported from Voxler, with the exception of MESH and 3DFACE entities. Additionally, surface color mapping is retained in the entities when exporting to 3D DXF, creating an almost exact replication of the resulting 3D DXF file.
Take full control of your data with Voxler’s new Worksheet window.

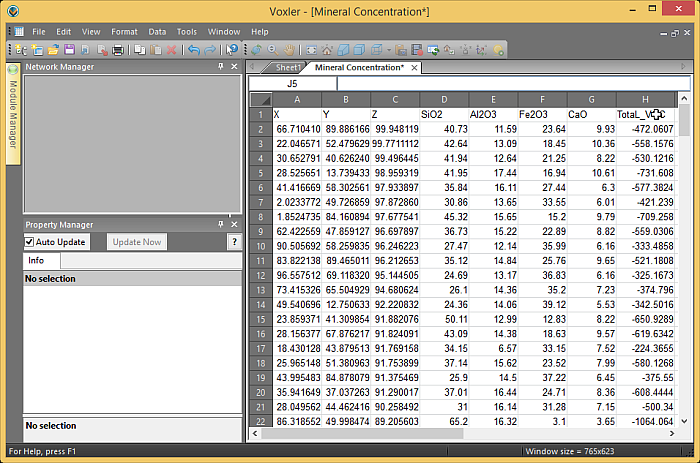

Taking control of your data has never been easier in Voxler with the addition of a full-functioning worksheet window. All point data that has been imported into Voxler 4 can be “hot-edited” in the new worksheet and the edits will be instantly applied to the model in the Viewer window. This “hot-editing” capability allows you to edit the XYZ coordinates, labels, well trace information, and component values and have the model update as soon as the edits are made, transforming Voxler 4 into a great data QC tool.
The new worksheet also provides tools for formatting, statistics, data transformations, and coordinate conversions.
Reproject point data in the worksheet
Reprojecting point data to fit the current coordinates of your project is smooth and seamless with Voxler 4’s new projections tools found in the worksheet. Point data can be imported and with a few mouse clicks, your data can be transformed using the coordinates of hundreds of well known, real world coordinate and projections systems. Voxler employs the most extensive and up-to-date coordinate and projection libraries on the market, so any system you can find will be supported and able to be converted.
This new tool allows you to search for known coordinate systems, modify the parameters of an existing system, and create new local coordinate systems.
Import LiDAR LAS Files
LAS files containing post-processed LiDAR data can now be imported into Voxler 4. Multiple filters are available at the time of import that aid in extracting the desired data from LAS files. LAS using any of the ASPRS LiDAR classification codes (unclassified, Ground, Low Vegetation, High Vegetation, etc) can be used to filter points based on the classification codes at the time of import. Spatial filtering is available at the time of import, which can be used to reduce the extent of large LiDAR datasets. Sample filtering is also available at the time of import that can down sample LAS files if necessary. All of these fitlering options can be used in conjunction with one another, making Voxler 4 a powerful LiDAR tool.
User Friendly, Streamlined Data Import Process
The data import process has been completely overhauled in Voxler 4; allowing for all coordinates, components, well trace information, and label columns to be set in the Property Manager. All column headings are preserved through the import process and displayed throughout the Property Manager; increasing the usability of large datasets where tracking and setting specific columns is now seamless. Any column assignments can be changed on the fly, so there is no need to re-import data to change component or coordinate columns.
New ScatterPlot Enhancements
The ScatterPlot module has been completely overhauled in Voxler 4. Many enhancements have been added including the addition of a new 3D symbol set, the ability to classify or bin data to create a classed ScatterPlot, label density controls, and the ability to color map RGB values from the source data to the individual ScatterPlot points.
The User Interface is Now More Friendly
Find commands more easily than before with all commands having new, user-friendly easy-to-find icons. We have added new user interface color styles that personalize the appearance of Voxler’s user interface. Open multiple Voxler project files and worksheets windows in the same instance with the new multiple tabbed document interface.
The New Welcome to Voxler Dialog
Hit the ground running with Voxler’s new welcome dialog! Immediately create a new project or worksheet window, or open the Tutorial. Alternatively, select any of the project files in the Samples folder, the recent files list, or in your project folder and open them immediately. As long as a file was saved in Surfer 13 or higher, a preview of the SRF file is displayed when the file is selected. You no longer have to wonder what each file contains before opening it! A number of helpful pro-tips also pop-up on the dialog to increase your Voxler IQ.
Display SEGY and SGY Data Using Real-World Coordinates
SEG-Y and SGY files now import using the X, Y, and Z coordinate information and locate in true 3D space within your project. Both 2D and 3D SEG-Y files are also now supported; which are easily imported using the overhauled SEG-Y import options. Importing SEG-Y into your project has never been this seamless.
Import ECW and SID files without Resampling or Extract a Region

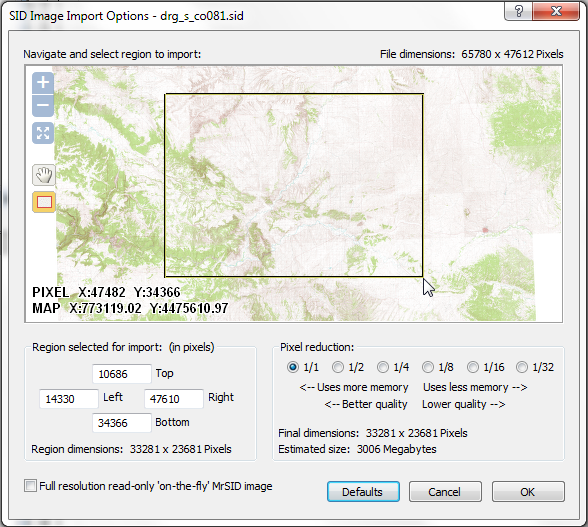

Managing large image files in ECW and SID formats is more powerful than ever. Keep the original full resolution of the image upon import! Alternatively, don’t waste time importing areas and information you don’t want. Choose to extract a portion of the file upon import.
Drape Contours as a Vector Overlay on 3D Surfaces
Contours generated from Contours modules can now be used as the input for the new vector overlay feature. This addition allows contours generated from another lattice source or grid to be overlaid on a 3D surface. Multiple variables can now be displayed at the same time; for example geophysical property contours can be overlaid on a topography 3D surface to generate a more informative model.
International font support
You’ve waited long enough. All aspects of Voxler now support international fonts and characters such as Chinese, Cyrillic, Arabic, Azerbaijani, Hungarian, and Hebrew! For example, you can set Text modules, Annotation modules, ScatterPlot labels, Legend labels, and WellRender labels to any language. Customize your project with language your audience will understand.
- Windows XP SP3 or higher, Vista SP3 or higher, 7, 8 (excluding RT), 10 or higher
- 32-bit and 64-bit operation system support
- 1024 x 768 or higher monitor resolution with minimum 16-bit color depth
- At least 500 MB free hard disk space
- At least 512 MB RAM
- Video driver with OpenGL acceleration, highly recommended
